Heat Sink Sizing Calculator - Rough Estimate


Estimate the overall volume of the heat sink required to cool a heat source by using the following equation:
V= (Q*Rv)/Delta T
Heat sink volume in cm3 = (heat source power in watts x volumetric thermal resistance) / (Tjunction - maximum ambient temperature)


Inputs (in yellow)
Heat Source Power (Q) Watt
Tjunction (manuf supplied) Deg. C
Max Ambient Temperature Deg. C
Delta - T (Calculated) Deg. C

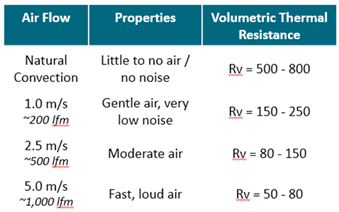

Volumetric Thermal Resistance (Rv)
(refer to table at right)
Estimated Heat Sink Volume cm3

Desired Heat Sink Volume
Length cm
Width  cm
Height (base plus fin) cm
Desired Heat Sink Volume cm3

Your Desired Heat Sink Size is


Reference
https://www.electronics-cooling.com/1995/06/how-to-select-a-heat-sink/
