Heat Sink Performance Calculator
Forced Convection Fin Pack with Solid Metal or Vapor Chamber Base
Design Tips
1. Length - up to 500mm
2. Fin Thickness - ranges from 0.2-0.6mm
3. Fin Spacing - should be at least 2X the fin thickness
4. Fin Height - between 3-100mm. Watch fin efficency - don't make the fins taller than useful.
5. Materials - aluminum or copper. Both can be nickel plated for corrosion resistance.
Notes - Airflow in this model assumes zero bypass.

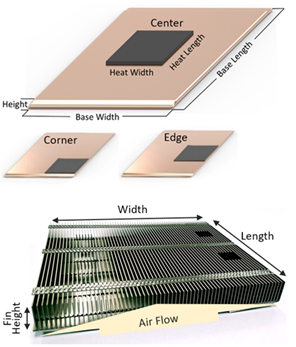

Inputs (in yellow)
Heat Source Info
Power (Q) Watts
Heat Source Length mm
Heat Source Width mm
Heat Source Location
Center, Corner or Edge
Heat Source Area  cm2
Power Density W/cm2

Heat Sink Base Info
Base Length mm
Base Width (Standard)
mm
Material (Metal Base)
Aluminum or Copper
Base Thickness
mm (VC and Metal Base)


Fin Pack Info
Fin Height mm
Fin Thickness
mm
Fin Gap
mm
Air Flow CFM
Fin Material
Aluminum or Copper
Ambient Temperature

Fin Efficiency

TIM
Interface Material


Results
Air ∆T °C
Fin to Air ∆T °C
Fin ∆T °C
Total Fin Pack  ∆T °C
Fin Pack Rth °C/W
" H2O
  PA

TIM ∆T  °C
Base - Fin  ∆T °C

  Vapor Chamber Metal Base
Base ∆T °C

Total Heat SInk ∆T °C
