Heat Pipe CAD Models

Cylindrical two-phase heat transfer devices

4mm 26mm

100mm 450mm

0 models found

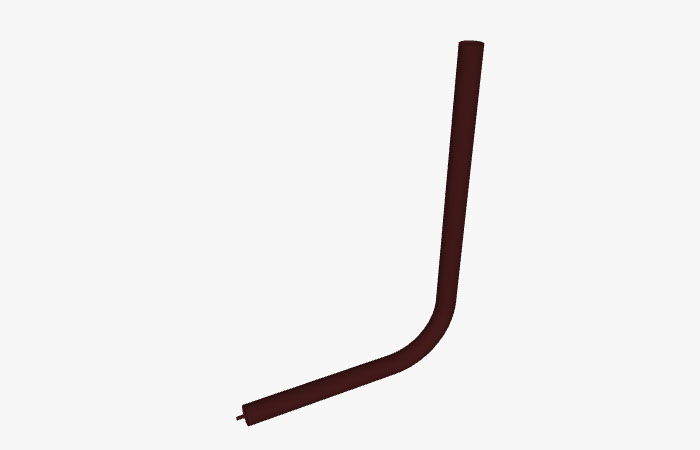

CELSIA_D12L300B

Diameter (D)

12mm

Length (L)

300mm

Shape

Bending

CELSIA_D14.5L300B

Diameter (D)

14.5mm

Length (L)

300mm

Shape

Bending

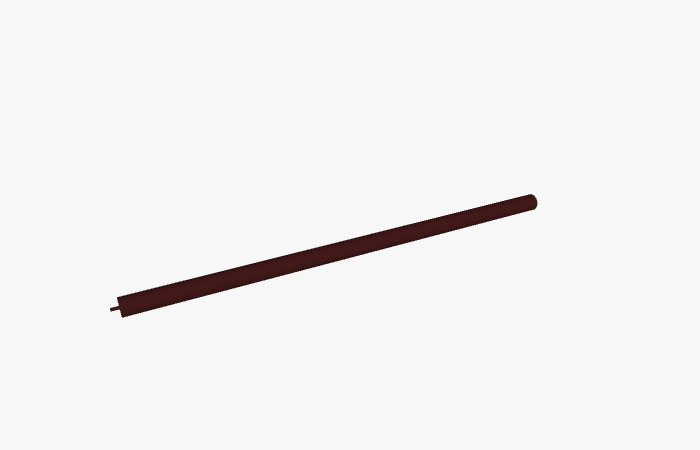

CELSIA_D12L300S

Diameter (D)

12mm

Length (L)

300mm

Shape

Straight

CELSIA_D16.5L450S

Diameter (D)

16.5mm

Length (L)

450mm

Shape

Straight

CELSIA_D16.5L450B

Diameter (D)

16.5mm

Length (L)

450mm

Shape

Bending

CELSIA_D14.5L300S

Diameter (D)

14.5mm

Length (L)

300mm

Shape

Straight

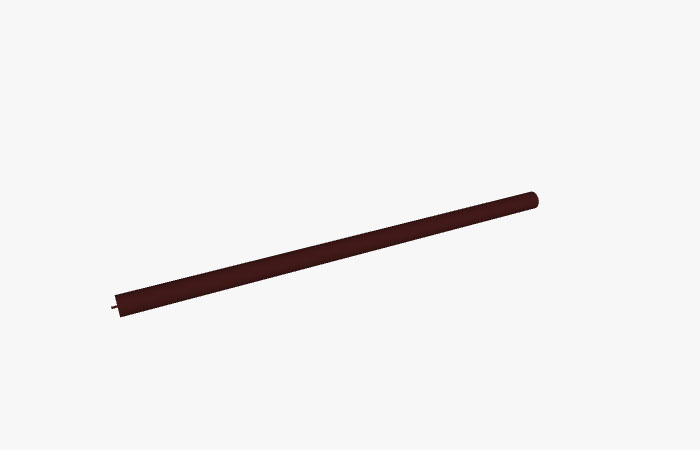

CELSIA_D19.4L450S

Diameter (D)

19.4mm

Length (L)

450mm

Shape

Straight

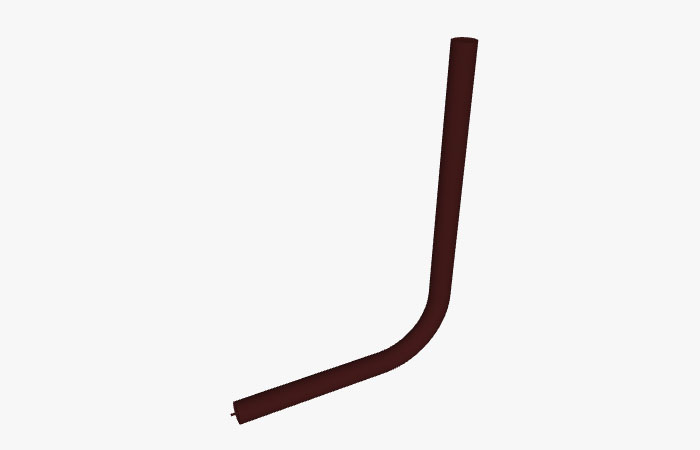

CELSIA_D19.4L450B

Diameter (D)

19.4mm

Length (L)

450mm

Shape

Bending

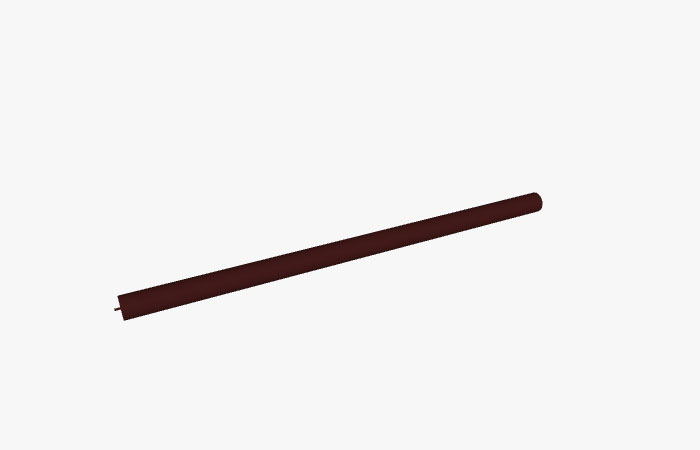

CELSIA_D22L450S

Diameter (D)

22mm

Length (L)

450mm

Shape

Straight

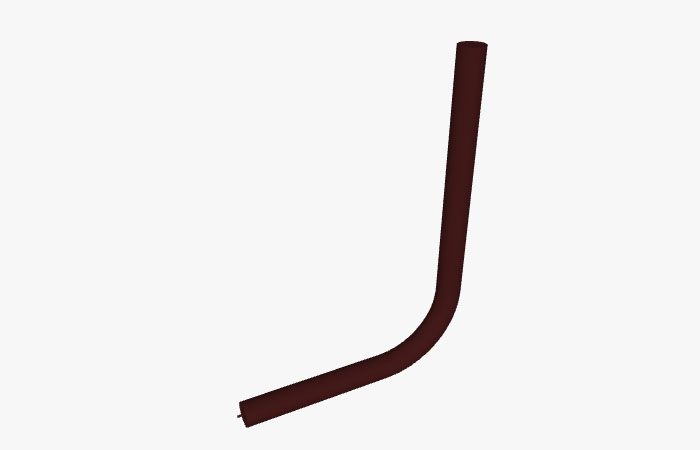

CELSIA_D22L450B

Diameter (D)

22mm

Length (L)

450mm

Shape

Bending

CELSIA_D25.4L450S

Diameter (D)

25.4mm

Length (L)

450mm

Shape

Straight

CELSIA_D25.4L450B

Diameter (D)

25.4mm

Length (L)

450mm

Shape

Bending

CELSIA_D10L200B

Diameter (D)

10mm

Length (L)

200mm

Shape

Bending

CELSIA_D10L200S

Diameter (D)

10mm

Length (L)

200mm

Shape

Straight

CELSIA_D4L150S

Diameter (D)

4mm

Length (L)

150mm

Shape

Straight

CELSIA_D4L150B

Diameter (D)

4mm

Length (L)

150mm

Shape

Bending

CELSIA_D3L150S

Diameter (D)

3mm

Length (L)

150mm

Shape

Straight

CELSIA_D3L150B

Diameter (D)

3mm

Length (L)

150mm

Shape

Bending

CELSIA_D6L150S

Diameter (D)

6mm

Length (L)

150mm

Shape

Straight

CELSIA_D6L150B

Diameter (D)

6mm

Length (L)

150mm

Shape

Bending

CELSIA_D5L150S

Diameter (D)

5mm

Length (L)

150mm

Shape

Straight

CELSIA_D5L150B

Diameter (D)

5mm

Length (L)

150mm

Shape

Bending

CELSIA_D8L200S

Diameter (D)

8mm

Length (L)

200mm

Shape

Straight

CELSIA_D8L200B

Diameter (D)

8mm

Length (L)

200mm

Shape

Bending
